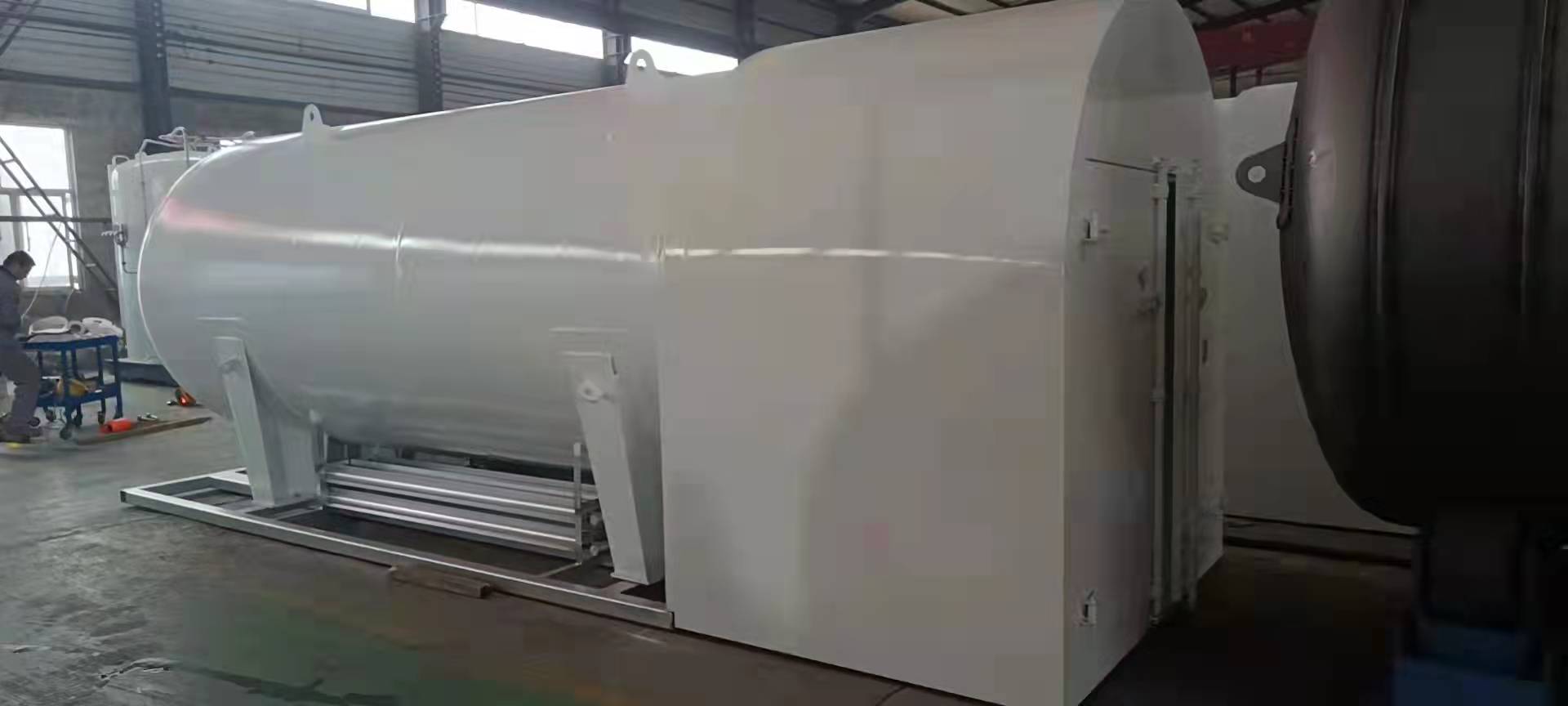

Liquid LO2,LN2,LAr Transport Tank
Model: CF-5000/16
Available volume: 5m3
Geometric volume： 5.26m3
Max working pressure： 16bar
Insulation method： Vacuum powder
Design temperature: -196℃
Medium: LO2
Main body material S30408/Q245R
Dimension: ～5260×1912×1965mm
(the actual design shall be revealed)
Empty weight: ～4640Kg
(the actual design shall be revealed)
2、Scope of supply
（3）Saddle 1set
（4）The Valves of tank (equipped with high-quality valves, instruments and liquid level gauge listed in the following:
Valves list (Please see the final design)
|
NO. |
Description |
Code |
Model |
Quantity |
|
1 |
Pressure Building-up Valve |
328DJ25 |
PN4.0 DN25 |
1 |
|
2 |
Upper Liquid Inlet Valve |
328DL40 |
PN4.0 DN40 |
1 |
|
3 |
Lower Liquid Inlet Valve |
328DL40 |
PN4.0 DN40 |
1 |
|
4 |
Pressure Building-up Adjustable Valve |
252DE20C |
PN2.5 DN20 |
1 |
|
5 |
Three-way Valve |
251DT25A |
PN2.5 DN25 |
1 |
|
6 |
Gas Passing Valve |
328DJ25 |
PN4.0 DN25 |
1 |
|
7 |
Air-Return Valve |
328DJ15 |
PN4.0 DN15 |
1 |
|
8 |
Vent Valve |
328DJ25 |
PN4.0 DN25 |
1 |
|
9 |
Residual Discharge Valve |
251DA8 |
PN4.0 DN8 |
1 |
|
10 |
Safety Valve of Inner Valve |
7K25L |
PN1.0 DN25 |
2 |
|
11 |
Outer Vessel Safety Valve |
H019 |
|
1 |
|
12 |
Piping Safety Valve |
|
PN4.0 DN10 |
1 |
|
13 |
Fullness Indication Valve |
328DJ10 |
PN4.0 DN10 |
1 |
|
14 |
Control Valve of Liquid Valve |
|
DN4 PN4.0 |
1 |
|
15 |
Vacuum Valve |
ZK-30WA |
|
1 |
|
16 |
Pressure Indication of Inner Vessel |
YO-100 Manometer |
0~2.5MPa |
2 |
|
17 |
Liquid Level Indication |
Differential Pressure Type |
0~2500mm |
1 |
|
18 |
Valve of instrument |
301R4 |
|
1 |
（5）5 meters of tube and tube box 1 set
（6）Operating box includes valves and instrument、liquid level gauge etc.
（7）Technical documents 1 set
